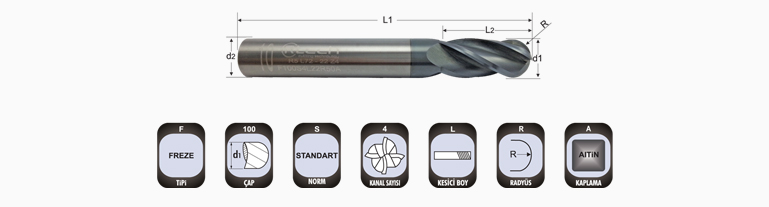

Karbür Freze / Karbür Küre Freze
|
| Uç Çapı |
Kesici Boyu |
Tam Boy |
Şaft Çapı |
Kanal Sayısı |
Küre Yarı Çapı |
Kaplamasız |
Kaplamalı |
| d1(e8) |
L2 mm |
L1 mm |
d2 mm(h5) |
Z Adet |
R mm |
Kod |
Kod |
| 2 |
6 |
40 |
2 |
2-3-4 |
1 |
F020S4L06R10 |
F020S4L06R10A |
| 3 |
8 |
40 |
3 |
2-3-4 |
1,5 |
F030S4L08R15 |
F030S4L08R15A |
| 4 |
11 |
50 |
4 |
2-3-4 |
2 |
F040S4L11R20 |
F040S4L11R20A |
| 5 |
13 |
50 |
5 |
2-3-4 |
2,5 |
F050S4L13R25 |
F050S4L13R25A |
| 6 |
13 |
57 |
6 |
2-3-4 |
3 |
F060S4L13R30 |
F060S4L13R30A |
| 7 |
16 |
60 |
7 |
2-3-4 |
3,5 |
F070S4L16R35 |
F070S4L16R35A |
| 8 |
19 |
63 |
8 |
2-3-4 |
4 |
F080S4L19R40 |
F080S4L19R40A |
| 9 |
19 |
67 |
9 |
2-3-4 |
4,5 |
F090S4L19R45 |
F090S4L19R45A |
| 10 |
22 |
72 |
10 |
2-3-4 |
5 |
F100S4L22R50 |
F100S4L22R50A |
| 11 |
26 |
83 |
11 |
2-3-4 |
5,5 |
F110S4L26R55 |
F110S4L26R55A |
| 12 |
26 |
83 |
12 |
2-3-4 |
6 |
F120S4L26R60 |
F120S4L26R60A |
| 13 |
26 |
83 |
13 |
2-3-4 |
6,5 |
F130S4L26R65 |
F130S4L26R65A |
| 14 |
26 |
83 |
14 |
2-3-4 |
7 |
F140S4L26R70 |
F140S4L26R70A |
| 15 |
32 |
92 |
15 |
2-3-4 |
7,5 |
F150S4L32R75 |
F150S4L32R75A |
| 16 |
32 |
92 |
16 |
2-3-4 |
8 |
F160S4L32R80 |
F160S4L32R80A |
| 18 |
32 |
92 |
18 |
2-3-4 |
9 |
F180S4L32R90 |
F180S4L32R90A |
| 20 |
38 |
104 |
20 |
2-3-4 |
10 |
F200S4L38R10 |
F200S4L38R10A |
