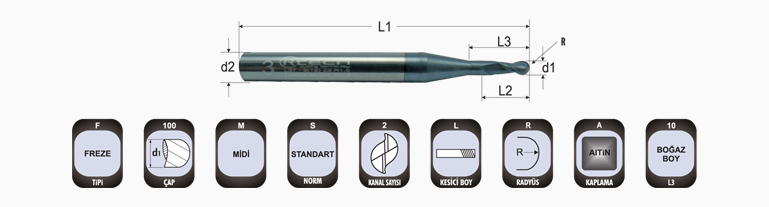

Karbür Freze / Karbür Midi Freze Küre
|
| Kesici Uç Çapı |
Kesici Boyu |
Boğaz Boyu |
Tam Boy |
Şaft Çapı |
Kanal Sayısı |
Küre Yarı Çapı |
Kaplamasız |
Kaplamalı |
| d1(e8) |
L2 mm |
L3 mm |
L1 mm |
d2 mm(h5) |
Z Adet |
R |
Kod |
Kod |
| 2 |
5 |
10 |
57 |
6 |
2 |
1 |
F020M57S2L05R100C10 |
F020M57S2L05R100A10 |
| 2,5 |
5 |
10 |
57 |
6 |
2 |
1,25 |
F025M57S2L05R125C10 |
F025M57S2L05R125A10 |
| 3 |
6 |
12 |
57 |
6 |
2 |
1,5 |
F030M57S2L06R150C12 |
F030M57S2L06R150A12 |
| 3,5 |
6 |
12 |
57 |
6 |
2 |
1,75 |
F035M57S2L06R175C12 |
F035M57S2L06R175A12 |
| 4 |
7 |
14 |
57 |
6 |
2-4 |
2 |
F040M57S2L07R200C14 |
F040M57S2L07R200A14 |
| 5 |
8 |
16 |
57 |
6 |
2-4 |
2,25 |
F050M57S2L08R250C16 |
F050M57S2L08R250A16 |
| 2 |
7 |
14 |
76 |
6 |
2 |
1 |
F020M76S2L07R100C14 |
F020M76S2L07R100A14 |
| 2,5 |
7 |
14 |
76 |
6 |
2 |
1,25 |
F025M76S2L07R125C14 |
F025M76S2L07R125A14 |
| 3 |
8 |
16 |
76 |
6 |
2 |
1,5 |
F030M76S2L08R150C16 |
F030M76S2L08R150A16 |
| 3,5 |
8 |
16 |
76 |
6 |
2 |
1,75 |
F035M76S2L08R175C16 |
F035M76S2L08R175A16 |
| 4 |
9 |
18 |
76 |
6 |
2-4 |
2 |
F040M76S2L09R200C18 |
F040M76S2L09R200A18 |
| 5 |
10 |
20 |
76 |
6 |
2-4 |
2,25 |
F050M76S2L10R250C20 |
F050M76S2L10R250A20 |
