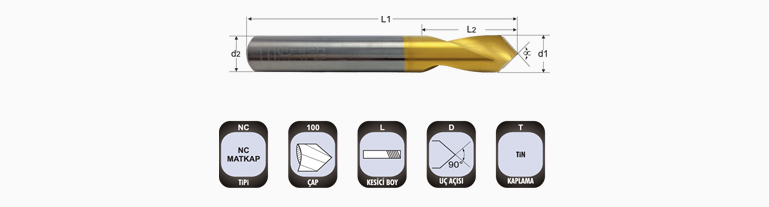

Karbür Freze / NC Matkap
|
| Uç Çapı |
Kesici Boyu |
Tam Boy |
Şaft Çapı |
Kanal Sayısı |
Açı |
Kaplamasız |
Kaplamalı |
| d1(e8) |
L2 mm |
L1 mm |
d2 mm(h5) |
Z Adet |
|
Kod |
Kod |
| 4 |
11 |
50 |
4 |
2 |
90° |
NC040L11D90 |
NC040L11D90T |
| 5 |
13 |
50 |
5 |
2 |
90° |
NC050L13D90 |
NC050L13D90T |
| 6 |
13 |
57 |
6 |
2 |
90° |
NC060L13D90 |
NC060L13D90T |
| 8 |
19 |
63 |
8 |
2 |
90° |
NC080L19D90 |
NC080L19D90T |
| 10 |
22 |
72 |
10 |
2 |
90° |
NC100L22D90 |
NC100L22D90T |
| 12 |
26 |
83 |
12 |
2 |
90° |
NC120L26D90 |
NC120L26D90T |
| 14 |
26 |
83 |
14 |
2 |
90° |
NC140L26D90 |
NC140L26D90T |
| 16 |
32 |
92 |
16 |
2 |
90° |
NC160L32D90 |
NC160L32D90T |
| 18 |
32 |
92 |
18 |
2 |
90° |
NC180L32D90 |
NC180L32D90T |
| 20 |
38 |
104 |
20 |
2 |
90° |
NC200L38D90 |
NC200L38D90T |
| 4 |
11 |
50 |
4 |
2 |
120° |
NC040L11D120 |
NC040L11D120T |
| 5 |
13 |
50 |
5 |
2 |
120° |
NC050L13D120 |
NC050L13D120T |
| 6 |
13 |
57 |
6 |
2 |
120° |
NC060L13D120 |
NC060L13D120T |
| 8 |
19 |
63 |
8 |
2 |
120° |
NC080L19D120 |
NC080L19D120T |
| 10 |
22 |
72 |
10 |
2 |
120° |
NC100L22D120 |
NC100L22D120T |
| 12 |
26 |
83 |
12 |
2 |
120° |
NC120L26D120 |
NC120L26D120T |
| 14 |
26 |
83 |
14 |
2 |
120° |
NC140L26D120 |
NC140L26D120T |
| 16 |
32 |
92 |
16 |
2 |
120° |
NC160L32D120 |
NC160L32D120T |
| 18 |
32 |
92 |
18 |
2 |
120° |
NC180L32D120 |
NC180L32D120T |
| 20 |
38 |
104 |
20 |
2 |
120° |
NC200L38D120 |
NC200L38D120T |
